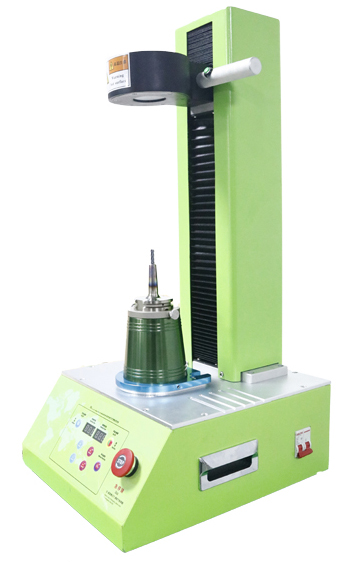

Induction Shrink Fit Heat Machine
Easy operation and intelligent.
Rated voltage AC 220V-240V
Light Weight and Compact mechanic
Shrink fit for tools with diamemter range 3mm to 20mm diameter

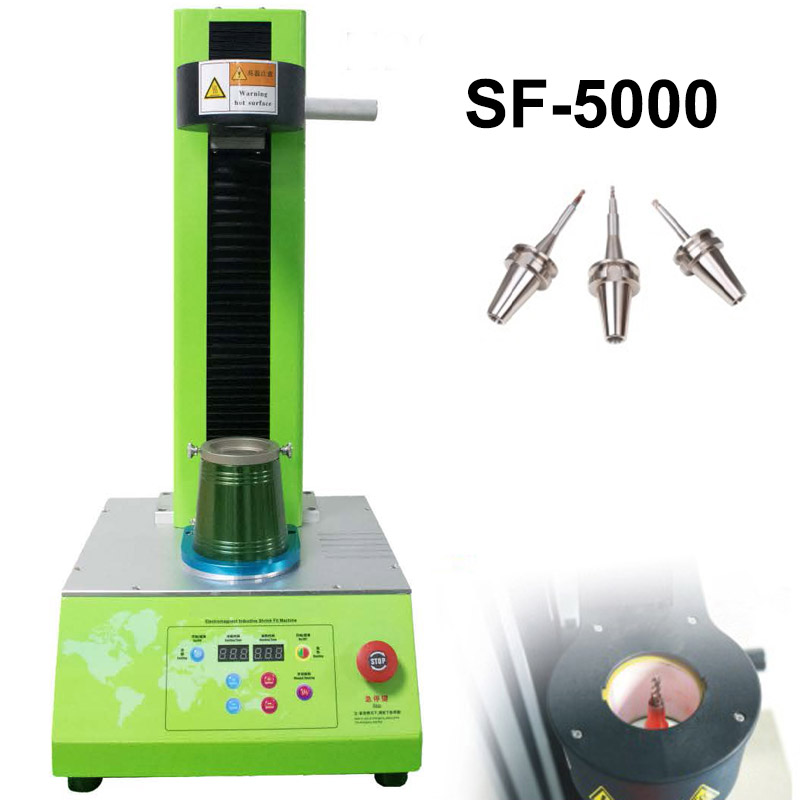

Model: Smithermal SF-5000 Heating cutting tool Range: diameter 3-20mm Electric Current: 23A working metal: Iron, Stainless Steel, high speed Iron and etc. Max temperature: 800 degree C Heating cycle time: 15-20 Seconds Weight：18.5 Kgs

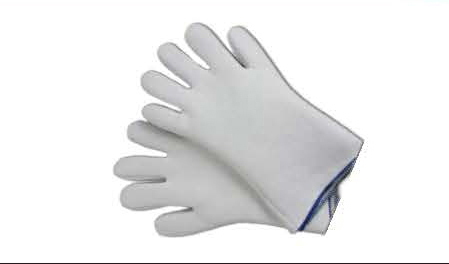

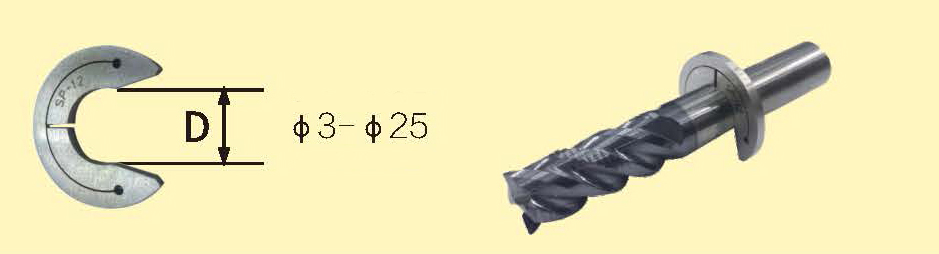

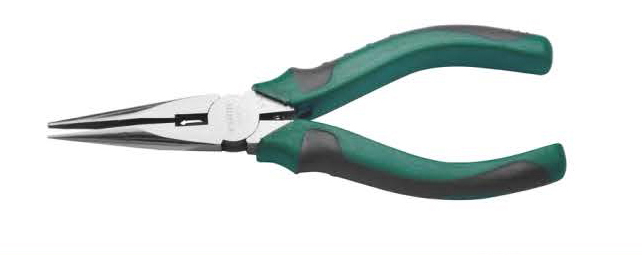

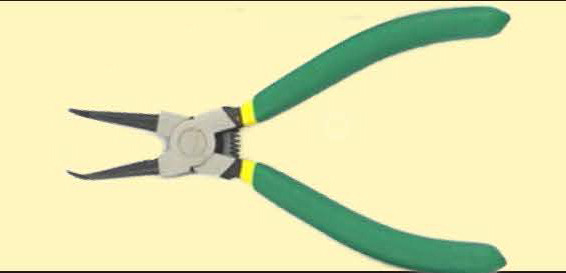

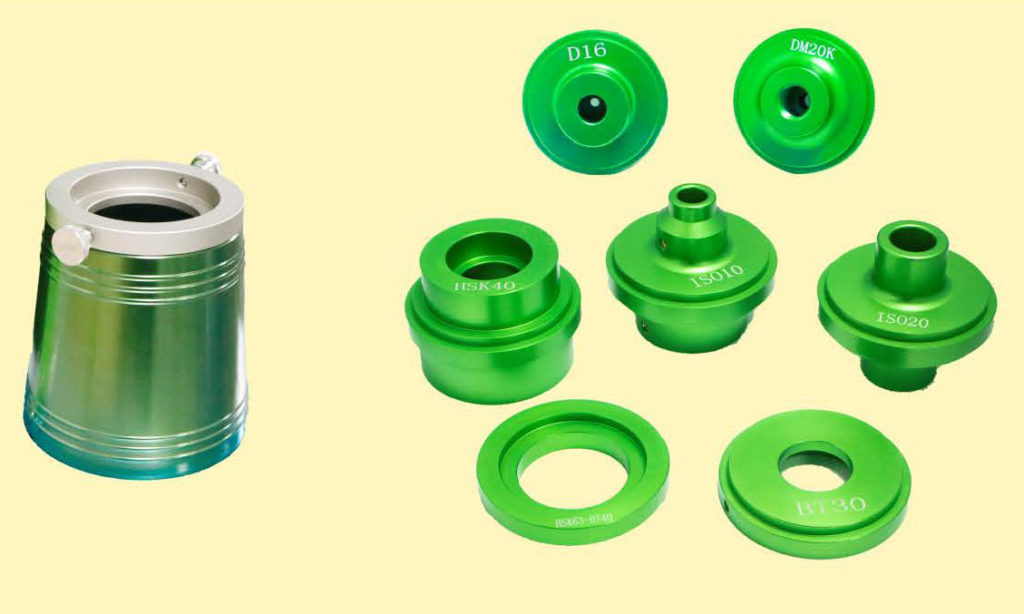

Optional Accessories

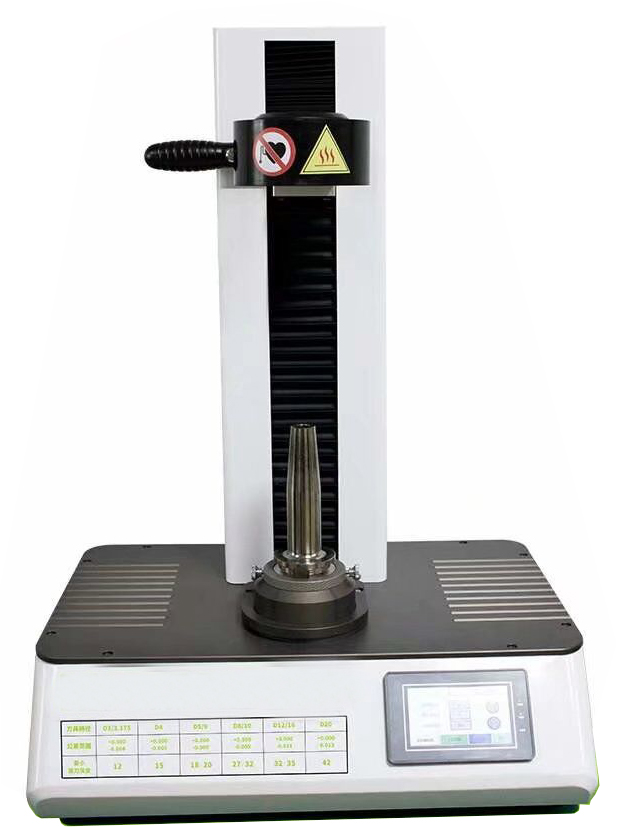

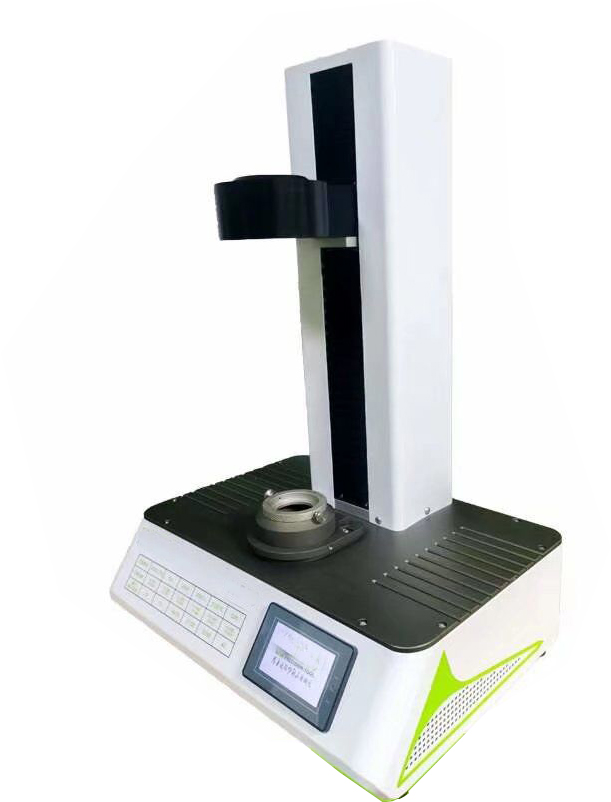

High-precision verticle type Shrink and fitting tool
Model Number | V-5000 | Power | 5000W |
Working Range diameter | D3-D20 | Cooling Type | Air Fan |
Coil inductor | D50 | Max Working outer diameter | D42 |
Dimension | 540x400x780mm | Net Weight | 25 Kgs |

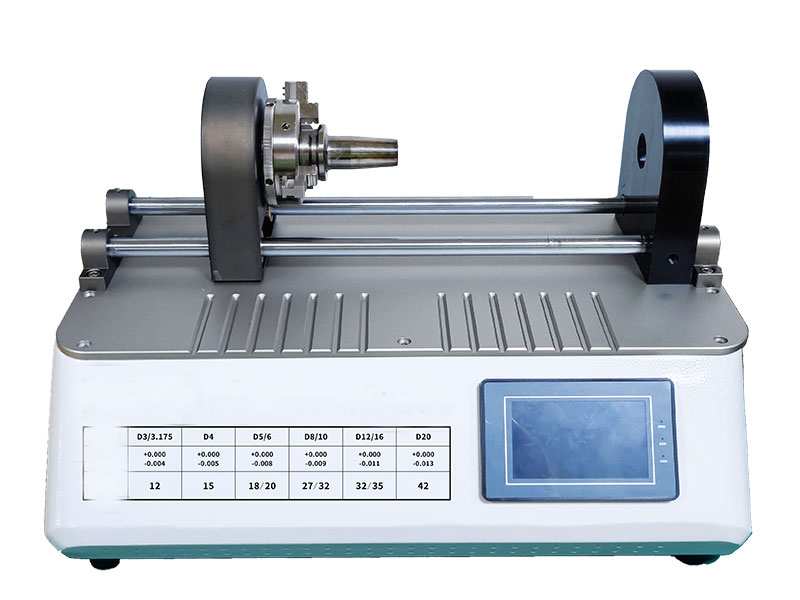

High-precision horizontal type Shrink and fitting tool
Model Number | HF-5000 | Power | 5000W |
Working Range diameter | D3-D12 | Cooling Type | Air Fan |
Coil inductor | D30 | Max Working outer diameter | D20 |
Dimension | 510x320x330mm | Net Weight | 16 Kgs |
